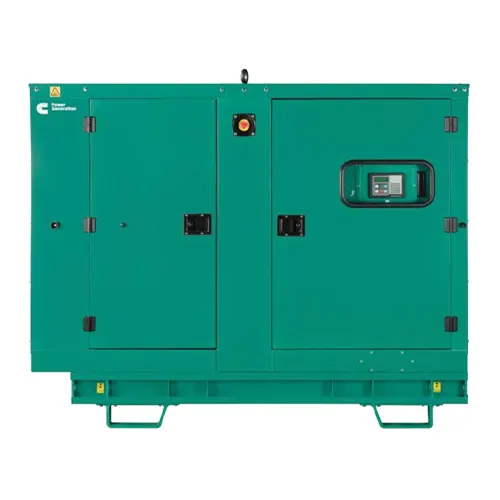

Meet the 44kVA Cummins generator. The C44D5e moves up to Cummins’ turbocharged 4BTAA3.3 engine, paired with a Stamford UCI224C alternator and a 180-litre base tank. It meets Stage IIIa emissions standards, cleaner than most generators in its class, and it’s built for commercial sites that run their generator often.
It suits supermarkets and retail centres, offices, clinics, schools, restaurants and light industrial sites with a three-phase supply.
What it will run
It delivers 32kW prime and 35kW standby, about 10.6kW per phase at prime rating. That covers a medium office building with central aircon, a supermarket’s cold rooms and tills, or a workshop with several three-phase machines.
Fuel and running time
At full load it uses 10.2 litres an hour. The 180-litre base tank gives about 17 hours at full load and a good deal more at typical working loads.
Specifications
| Model | Cummins C44D5e |
| Standby power | 44kVA / 35kW |
| Prime power | 40kVA / 32kW |
| Phase | Three phase, 380 to 415V, 50Hz |
| Current | 63.3A per phase |
| Engine | Cummins 4BTAA3.3-G14, turbocharged, mechanical governor, 1500rpm |
| Alternator | Stamford UCI224C |
| Control panel | Cummins PowerStart 0600 |
| Breaker | 4-pole circuit breaker |
| Emissions | Stage IIIa |
| Base fuel tank | 180 litres |
| Fuel use | 10.2 litres per hour at 100% load |
| Noise level | 76dB(A) at 1m |
| Weight | 1,236kg (dry) |
| Dimensions (L x W x H) | 2270 x 975 x 1920mm |
| Warranty | 1 year / 500 hours standby, or 1 year unlimited hours prime |
Installation
A generator this size sits on a level concrete plinth outdoors and is wired into your main distribution board through a changeover switch or automatic transfer switch. The work must be done by a registered electrician, who issues a Certificate of Compliance. We supply, deliver, offload and install the complete setup. Our installation guide explains each step.
Part of our Cummins range: see all Cummins generators for sale, from 17kVA to 450kVA.
See our 40kVA generator comparison: Cummins 44kVA vs Hyundai 45kVA.
Common questions
44kVA or 55kVA Cummins?
They share the same engine and frame. The 55kVA Cummins uses a larger alternator for 8kW more prime power. If your load is close to 30kW, the extra headroom is worth having.
What is Stage IIIa?
A European emissions standard. It means a cleaner-burning engine, which also tends to mean better fuel efficiency.
