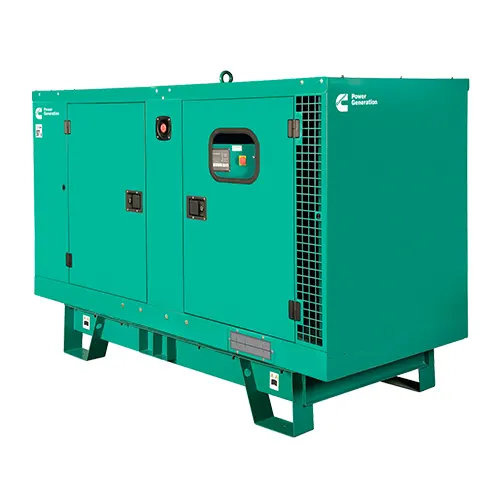

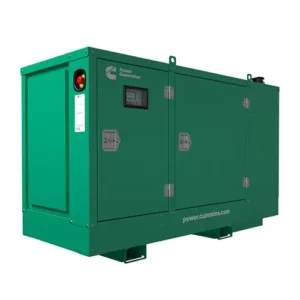

Meet the 38kVA Cummins generator. The C38D5 steps up to Cummins’ larger X3.3 engine and a Stamford S1L2 alternator, controlled by the PowerCommand 1.1 panel. It’s a serious commercial generator in a compact canopy, built for businesses where an outage means lost sales or spoilt stock.
It suits offices, clinics, supermarkets and retail, restaurants, schools and light industry with a three-phase supply.
What it will run
It delivers 28kW prime and 30kW standby, about 9.3kW per phase at prime rating. With loads balanced by your electrician, that’s a medium office block with aircons, a supermarket’s lighting, tills and cold rooms, or a workshop with several three-phase machines running together.
Fuel and running time
At full load it uses 9 litres an hour, so the 175-litre base tank lasts about 19 hours flat out, and much longer at a normal working load. That’s enough to ride through most outages without refuelling.
Specifications
| Model | Cummins C38D5 |
| Standby power | 38kVA / 30kW |
| Prime power | 35kVA / 28kW |
| Phase | Three phase, 380 to 415V, 50Hz |
| Current | 54.7A per phase |
| Engine | Cummins X3.3-G1, mechanical governor, 1500rpm |
| Alternator | Stamford S1L2-J1 |
| Control panel | Cummins PowerCommand 1.1 |
| Breaker | 4-pole circuit breaker |
| Base fuel tank | 175 litres |
| Fuel use | 9 litres per hour at 100% load |
| Noise level | 77dB(A) at 1m |
| Weight | 1,127kg (dry) |
| Dimensions (L x W x H) | 2253 x 969 x 1619mm |
| Warranty | 1 year / 500 hours standby, or 1 year unlimited hours prime |
Installation
A generator this size needs a level concrete plinth outdoors with good airflow, and it must be connected to your distribution board through a changeover switch by a registered electrician, who issues a Certificate of Compliance. We can supply and install the complete setup, including an automatic transfer switch. Our installation guide explains the process.
Part of our Cummins range: see all Cummins generators for sale, from 17kVA to 450kVA.
Comparing options around this size? See our 30kVA generator price guide, comparing the Hyundai, Stephill, Cat and Cummins.
Looking for a different size? See all our Cummins generators and the Cummins generator price list.
Common questions
How does it compare to the 44kVA Cummins?
The 44kVA Cummins adds about 4kW of prime power. Choose based on your load, with some headroom for growth.
Can it start automatically?
Yes. The PowerCommand panel supports automatic starting through a transfer switch.
