Cat diesel generator

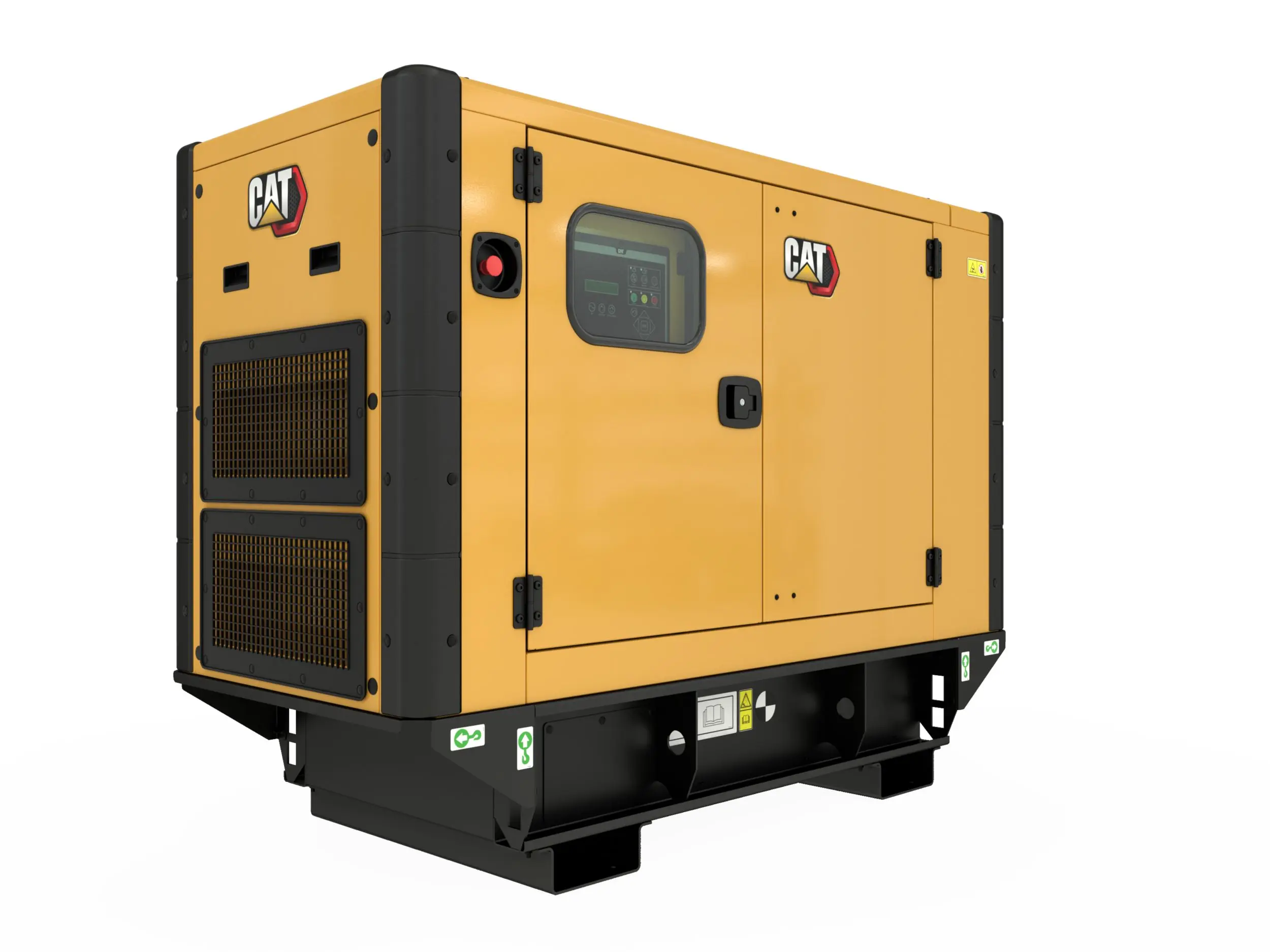

33kVA Cat Generator

33kVA About 26.4kW
at 0.8 power factor

In stock: ready for delivery

A Cat 33kVA three-phase diesel generator with a turbocharged Cat C3.3 engine at 1500rpm, Cat alternator, EMCP 4.1 control panel and a 161-litre tank.

R97,500excl. VAT
R112,125incl. VAT
VAT (15%): R14,625 Confirmed on your written quote, with delivery and installation options.

Prefer to talk it through? Call +27 68 878 5922

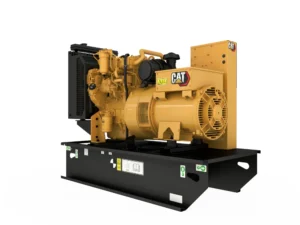

Meet the 33kVA Cat generator. Caterpillar needs no introduction on a mine or a building site, and the same engineering goes into their smaller generators. This 33kVA set runs a turbocharged three-cylinder Cat C3.3 engine at 1500rpm, feeding a Cat brushless alternator, all managed by Cat’s EMCP 4.1 control panel.

It suits businesses that want a premium brand with a strong dealer and parts network behind it: offices, clinics, schools, retail and light industry with a three-phase supply.

What it will run

It’s rated at 30kVA / 24kW, with 33kVA / 26.4kW available on standby. Plan around 19kW for continuous running, about 6.3kW per phase with loads balanced. That covers an office with aircons, a shop with refrigeration or a workshop with three-phase machines.

Fuel and control

It uses 6.9 litres an hour at full prime load and 7.7 litres at full standby load. The 161-litre tank gives more than 20 hours at full load. The EMCP 4.1 panel shows engine and power data clearly and supports automatic start through a transfer switch.

Specifications

BrandCat (Caterpillar)
PhaseThree phase, 400V, 50Hz, 0.8 power factor
Rated power30kVA / 24kW
Standby power33kVA / 26.4kW
EngineCat C3.3, 3 cylinder in-line, 3.3 litre, turbocharged
Engine speed1500rpm, mechanical governor
AlternatorCat, brushless, single bearing, AVR, class H insulation, IP23
Control panelCat EMCP 4.1
Fuel tank161 litres
Fuel use6.9 L/h at 100% prime load, 7.7 L/h at 100% standby load
Noise level68dB(A) at 7m (77dB(A) at 1m), full load
Weight1,031kg
Dimensions (L x W x H)2120 x 980 x 1519mm

Installation

A generator this size needs a level concrete plinth outdoors with good airflow, and it must be connected to your distribution board through a changeover switch by a registered electrician, who issues a Certificate of Compliance. We can supply and install the complete setup, including an automatic transfer switch. Our installation guide explains the process.

Part of our Cat range: see all Cat generators for sale, from 33kVA to 500kVA.

Comparing options around this size? See our 30kVA generator price guide, comparing the Hyundai, Stephill, Cat and Cummins.

Common questions

Is Cat worth the extra cost?

If you want a premium engine, a well-supported control panel and a strong resale value, yes. For pure value, compare the 28kVA Hyundai.

What size comes next?

The 38kVA Cummins and the 50kVA Cat.
