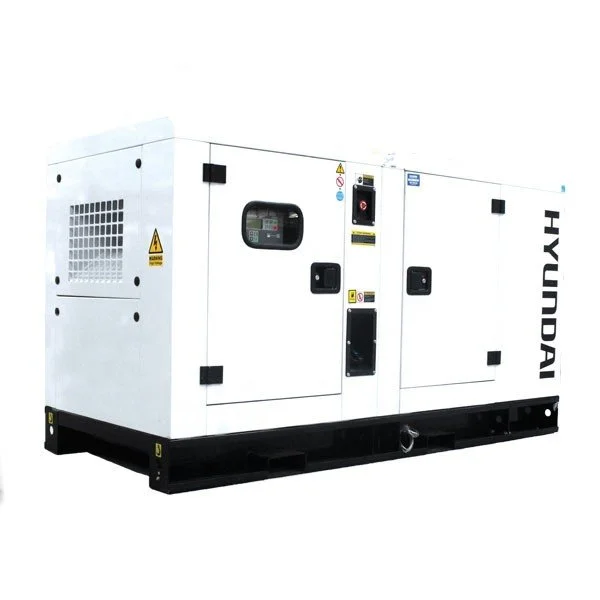

Meet the 85kVA Hyundai generator. The DHY85KSE gives you a lot of generator for the money. It runs a four-cylinder HY4A100Z engine at 1500rpm, the low speed you want in a machine that will do serious hours, and comes with AVR, remote start, low-oil shutdown and an ATS connection for fully automatic backup.
It suits commercial buildings, schools, hospitals and clinics, farms and factories with a three-phase supply that need solid backup without a premium-brand price.
What it will run
It delivers 62kW prime and 68kW standby, about 20kW per phase at prime rating. That covers an office building with central aircon, a supermarket’s refrigeration and tills, a school, or a factory with several machines. With an automatic transfer switch, it takes over within seconds of a power failure, which is exactly what you want for servers and cold rooms.
Easy to monitor

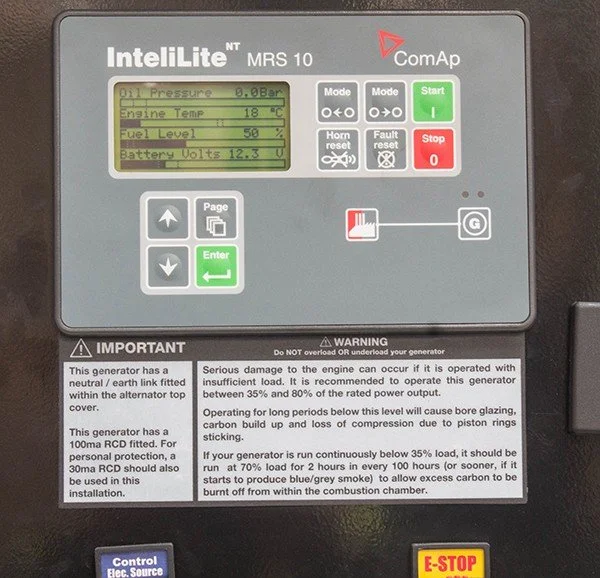

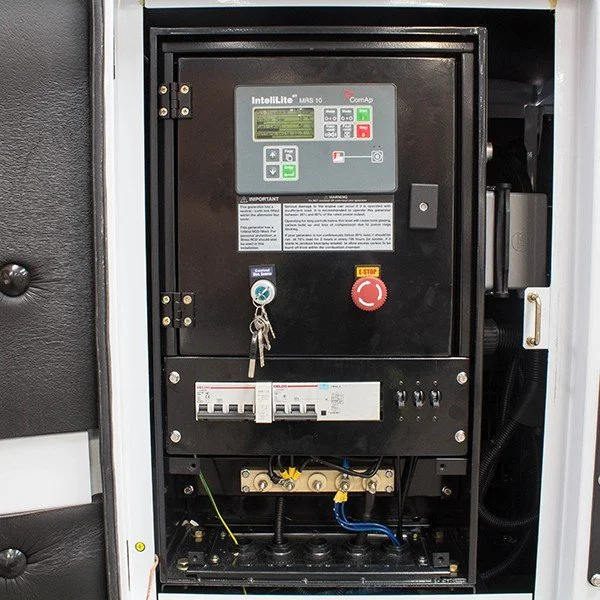

The digital panel shows total running hours, voltage and frequency, so you always know when the next service is due and whether it’s delivering clean power.
Specifications
| Model | Hyundai DHY85KSE |
| Phase | Three phase, 400V, 50Hz, 0.8 power factor |
| Rating | 85kVA |
| Prime power | 62kW |
| Standby power | 68kW |

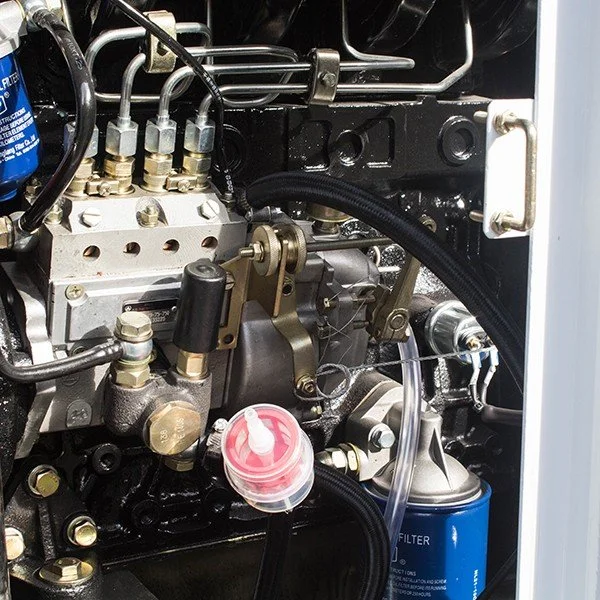

| Engine | Hyundai HY4A100Z-D20, 4 cylinder in-line, water cooled |
| Engine speed | 1500rpm |
| Start | Electric, with remote start function |
| Battery | 12V / 60Ah |
| AVR | Yes |
| ATS | ATS connection |
| Low oil shutdown | Yes, with alarm |
| Current | 111A continuous, 123A maximum |
| Aspiration and governor | Turbocharged, electronic governor |
| Fuel tank | 180 litres |
| Fuel use | 17.7 litres per hour at 100% load |
| Runtime | About 10 hours at 100% load |
| Noise level | 72dB(A) at 7m |
| Weight | 1,270kg |
| Dimensions (L x W x H) | 2520 x 980 x 1510mm |
Installation
Generators in this class need a proper plan: a level concrete plinth, room for airflow and service access, a correctly sized cable run to the main board, and an automatic transfer switch rated for your supply. The installation must be done by a registered electrician, who issues a Certificate of Compliance. We handle delivery, crane offloading, installation and commissioning. See our installation guide for more.
See our 85kVA generator guide for what it powers and running costs. Part of our Hyundai range: see all Hyundai generators for sale, single and three phase, from 7.25kVA to 125kVA.
Comparing options around this size? See 85kVA vs 88kVA vs 90kVA: Hyundai, Cat or Cummins.
Common questions
How long does it run on a tank?
The 180-litre tank gives about 10 hours at full load, and much longer at a normal working load. An external tank can be added for extended running.
How does it compare to the 88kVA Cat?
Similar power. The 88kVA Cat costs more but brings a Cat engine, a slightly larger tank and a quieter canopy.
