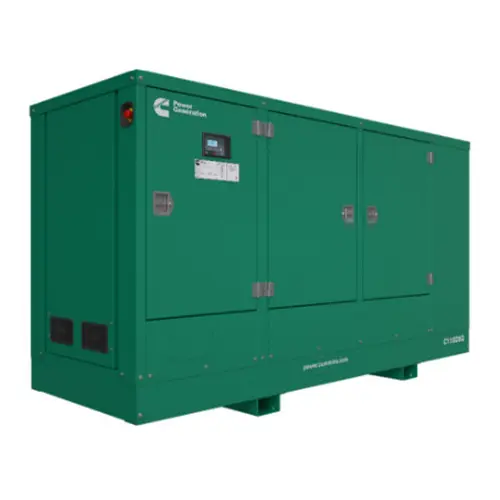

Meet the 170kVA Cummins generator. The C170D5Q is a workhorse for large buildings and industry. It runs Cummins’ 6BTAA5.9 engine with an electronic governor, a Stamford UC274F alternator and a 400-litre base tank, inside a canopy that keeps it at 68dB(A) at 7 metres. It also carries a longer warranty than our smaller Cummins sets: 2 years or 500 hours on standby.
It suits hospitals, hotels, shopping centres, office parks, cold-chain businesses and factories with a three-phase supply.
What it will run
It delivers 124kW prime and 136kW standby, about 41kW per phase at prime rating. With a prime rating, it can run continuously, not just during outages, which makes it suitable for sites that need long daily running.
Fuel and running time
It uses 37 litres an hour at full load. The 400-litre base tank gives about 11 hours at full load and considerably more at a normal working load.
Specifications
| Model | Cummins C170D5Q |
| Standby power | 170kVA / 136kW |
| Prime power | 155kVA / 124kW |
| Phase | Three phase, 400V, 50Hz |
| Current | 244.8A per phase |
| Engine | Cummins 6BTAA5.9-G7, electronic governor, 1500rpm |
| Alternator | Stamford UC274F |

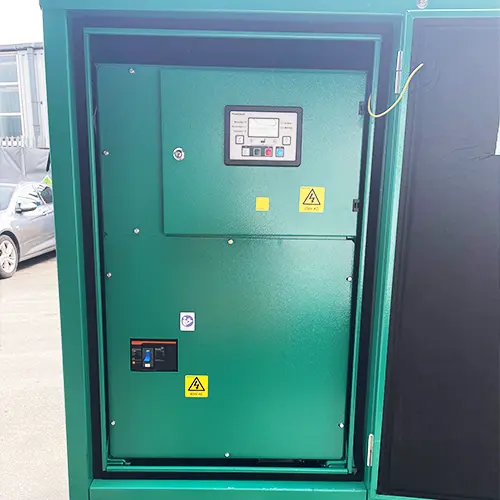

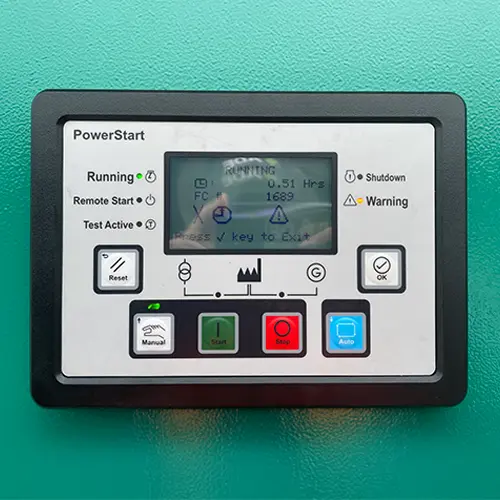

| Control panel | Cummins PowerStart 0600 |
| Breaker | 4-pole circuit breaker |
| Base fuel tank | 400 litres |
| Fuel use | 37 litres per hour at 100% load |
| Noise level | 68dB(A) at 7m (79dB(A) at 1m) |
| Weight | 1,891kg (dry) |
| Dimensions (L x W x H) | 3100 x 1180 x 1950mm |
| Warranty | 2 years / 500 hours standby, or 1 year unlimited hours prime |
Installation and commissioning
An industrial generator is a project, not just a delivery. It needs an engineered plinth, correctly rated cabling to the main switchboard, an automatic transfer switch sized for your supply, and a plan for fuel delivery and exhaust. The installation must be carried out by a registered electrician and signed off with a Certificate of Compliance. We handle the site assessment, delivery, crane offloading, installation, load testing and handover. Read our installation guide for an overview.
Part of our Cummins range: see all Cummins generators for sale, from 17kVA to 450kVA.
See our 170kVA generator price guide for running costs and how it compares with the Cat 150kVA and 200kVA.
Common questions
Prime or standby: which do I need?
If the generator will only cover outages, standby. If it will run for long hours or as a main supply, size against the 124kW prime rating.
What sizes are nearby?
The 150kVA Cat below it, and the 200kVA Cat above.
